Manually Installing the SCCM Client



Manually Installing the SCCM Client

Note :  Fallback status point should be installed on SCCM server.
Must have Administrator permissions to the folder to access the client installation files

This installation method might sound like a very time-consuming method; however, you will find yourself installing clients manually for several reasons. You can manually install the client by running CCMSetup.exe from the site server or from any management point. The file is located in the Program Files\Microsoft Configuration Manager\Client folder.

If you prefer the scripty way use:
1.      Copy the client folder from SCCMServer machine to Client machine
The SCCM 2012 client is stored on your SCCM server (or additional Management Points) in the Client-folder under SMS_SITECODE (\\SCCMSERVER\SMS_SITECODE\Client\).
You can run the setup using syntax or just simply use the GUI to choose your settings after installation.
2.      Open Cmd prompt using admin rights
3.      Goto the client folder location
4.      Type the following command
ccmsetup.exe /mp:SCCMSERVER /logon SMSSITECODE=AUTO fsp= SCCMSERVER
You can read more about the setup commands at TechNet.

http://blog.jocha.se/upload/2012/10/sccm-2012-client-install.png
 Or

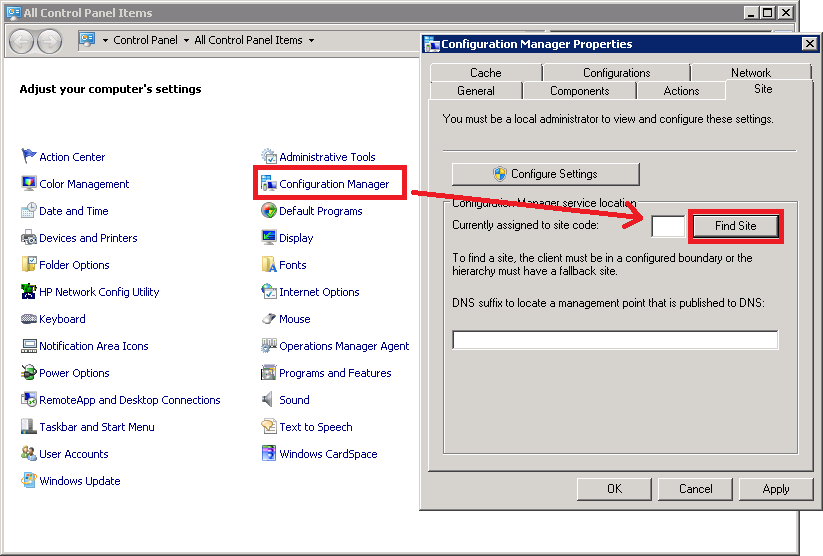

Run ccmsetup.exe, when the client is installed go to Control Panel, press Configuration Manager.
Go to the Site-tab, press Configure Settings to elevate the window and then press Find Site.
Make sure the proper site name shows up and then press OK. The client will now download and apply your client policies.



 http://blog.jocha.se/upload/2012/10/SCCM-2012-Find-Site.png


How to check Client is installed

1.        Check The following Logs in location C:\windows\ccmsetup\logs

While the installation is in progress, you can view the installation program running within Task Manager or monitor the installation by reading the log files
.
--> Ccmsetup.log If you are able to see that the ccmsetup.exe service is created then it clearly informs us that the server has completed its request to the client and the client has started installing.
--> ClientIDManagerStartup.log--- you have to get Client is Registered

Also check the following logs
* CCM.log—Serverside log
* Client.msi.log

2.        Go to Task Manager --> Processes -->

In Task Manager you will see ccmsetup.exe running. As it completes, you will see ccmsetup.exe replaced by the agent host program ccmexec.exe.

3.        Go to SCCMServer Machine  , Open Configuration Manager-->Assertsand Compliance--> Devices--> Client –YES

NOTE: If Client activity is InActive Then ,
Goto Client Machine, open cmd promptàServices.msc --> SMSHostAgent --> restart
 then it becomes Active

Client Uninstall

Uninstalling the client is pretty straight forward.
Open a command prompt (elevated privileges).
Write: C:\Windows\ccmsetup\ccmsetup.exe /uninstall

 http://blog.jocha.se/upload/2012/10/sccm-2012-client-uninstall.png


Installation Error Codes:

  • 2 – The system cannot find the file specified.
  • 5 – Access denied.
  • 52 – You were not connected because a duplicate name exists on the network. Make sure there is not a duplicate name in DNS and that 2 machines don’t have the same IP in DNS.
  • 53 – Unable to locate – http://support.microsoft.com/kb/920852 – cannot connect to admin$ – Computer Browser not started – add File/print sharing to Exceptions in Firewall – turn file and print on.
  • 58 – The specified server cannot perform The requested operation
  • 64 – The specified network name is no longer available. Source: Windows
  • 67 – network name cannot be found.
    86 – network password is not correct? Machine Name <> resolved name.
  • 112 – Not enough disk space
  • 1003 – Cannot complete this function.
  • 1053 – The service did not respond to the start or control request in a timely fashion.
  • 1068 – The dependency service or group failed to start
  • 1130 – Not enough server storage is available to process this command. Source: Windows
  • 1203 – The network path was either typed incorrectly, does not exist, or the network provider is not currently available. Please try retyping the path or contact your network administrator.
  • 1208 – An extended error has occurred. Source: Windows
  • 1396 – Logon Failure: The target account name is incorrect. (NBTSTAT -a reverse lookup, duplicate IP address)
  • 1450 – Insufficient system resources exist to complete the requested service. Source: Windows
  • 2147749889 – Generic WMI failure (Broken WMI)
  • 2147749890 – not found – Source: Windows Management (WMI) – try repair WMI
  • 2147749904 – Invalid class – Source: Windows Management (WMI)
  • 2147749908 – Initialization failure – Source: Windows Management (WMI)
  • 2147942405 – Access is Denied (Firewall rule? / MacAfee-HIPS?)
  • 2147944122 – The RPC server is unavailable. (Dcom is miss-configured for security . http://support.microsoft.com/kb/899965 )
  • 2148007941 – Server Execution Failed
